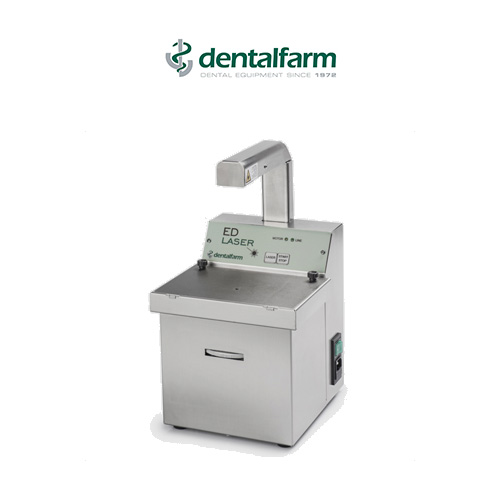

Dental Farm ED-LASER (Pin – Hole Drilling Unit)
0
Laser pin-hole drilling unit fully made in stainless steel allowing for utmost precision in drilling operation according to the removable stump technique.
The sturdy and stable housing of the unit is fully made in stainless steel. The wide working place provides for comfortable working conditions and the exclusive vertical motiom system assures the most accurate precision.
Drilling depth is adjustable and, thanks to the wide plate stroke extension, drilling of models positioned on plastic bases is allowed, too.
Possibility of connection to an electric dust extractor removing dust particles and chips from the operating area.
Description
PIN-HOLE DRILLING UNIT WITH LASER BEAM
Laser pin-hole drilling unit fully made in stainless steel allowing for utmost precision in drilling operation according to the removable stump technique.
The sturdy and stable housing of the unit is fully made in stainless steel. The wide working place provides for comfortable working conditions and the exclusive vertical motiom system assures the most accurate precision.
Drilling depth is adjustable and, thanks to the wide plate stroke extension, drilling of models positioned on plastic bases is allowed, too.
Possibility of connection to an electric dust extractor removing dust particles and chips from the operating area.
CHARACTERISTICS
Drill pliers with 3mm shaft
Available drill: 5301001 cone-shaped, Zeiser type
Additional drill available on request: 5301002 stepped twist drill, Pindex type
Powerful 150W motor at 2800 rpm
Wide extension of the vertical movement: up to 20mm
Overall dimensions: 230 x 230 x 410h
Net and gross weight: 13,8 kg – 15,4 kg
