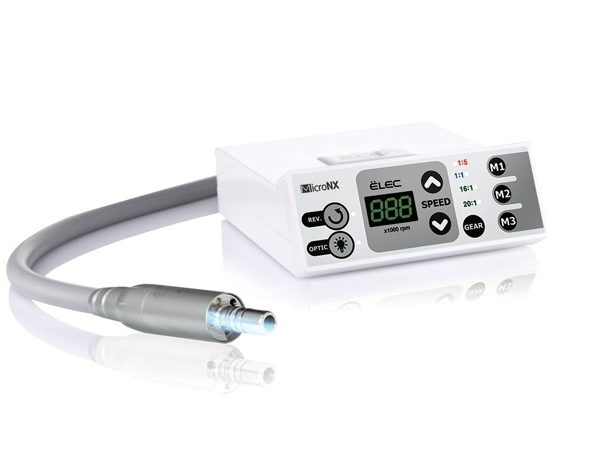

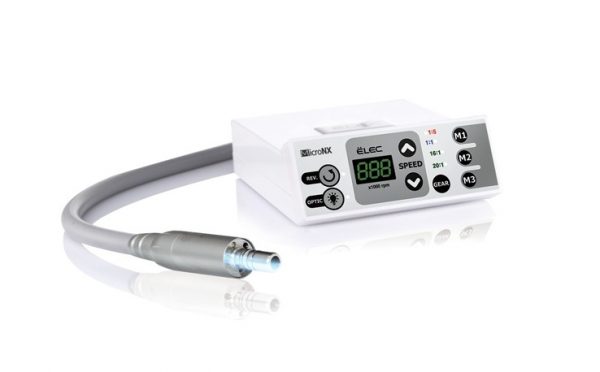

MicroNX Elec Mini LED Mobile
0
Product Specifications
Please check the voltage and the electric power of the product, and conform to the instructions.

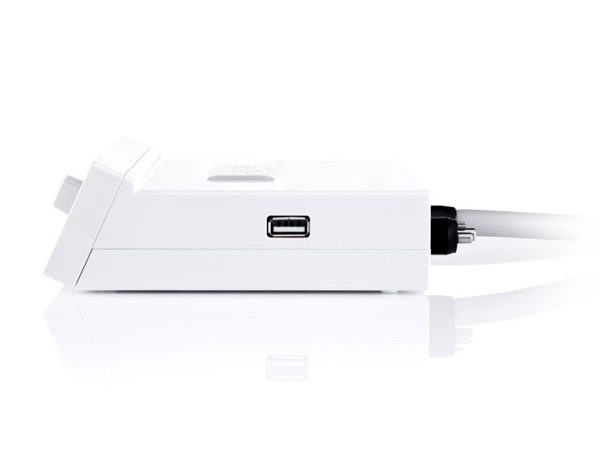

CONTROLLER
Dimension: W 113 x D 135 x H 45 mm
Speed control: Can be controlled through the button control method or foot pedal connection

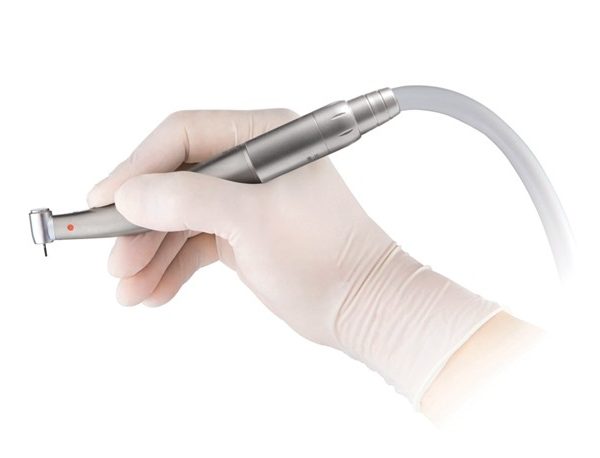

MOTOR
Model: ELEC-LED
Motor: Brushless
Max.Speed: 40,000 rpm
Max.Torque: 3.0 N.cm
Dimension: L 72 x Ø 20 mm
Weight: 68 g
Optic: Yes
Internal water spray: Yes
Description
Product Composition
Please check the optional product provided. Parts other than the main components may not be used separately.
 |
|

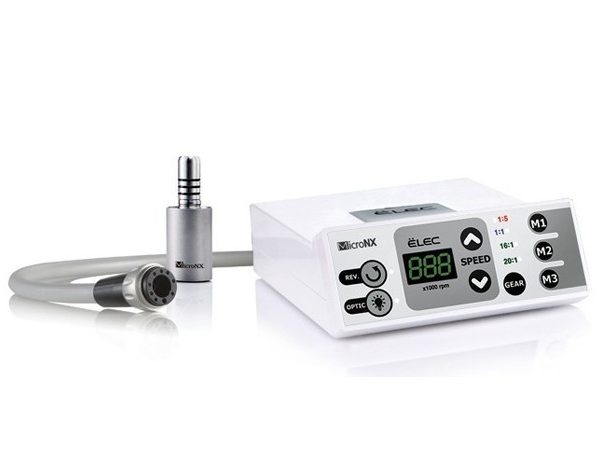

| 1. Controller | 2. Motor |
Related products
MicroNX New ImplaNX Implant Motor
Product Specifications
Please check the voltage and the electric power of the product, and conform to the instructions.
ENGINE BODY
Power supply voltage: AC 110 ~ 240 V
Frequency: 50/60 Hz
Power consumption: 100 VA
Max. Coolant flow rate: 100 ml/min
Fuse: 2 x 250 V – T1.25 AH
Dimension: 250mm(W) x 250mm(L) x 110mm(H)
MOTOR
Model: ISM-B70L
Max. Speed: 40,000 rpm
Internal resistance(Phase to phase): 730 [mΩ]
Internal inductance(Phase to phase): 110 [uH]
Fuse: 24mm(Diameter) x 100mm(Length)
Weight: 80 g
Optic: Yes
FOOT PEDAL
Model: FC-V1
Speed control: Variable
Foot control functions: Program control, Coolant control, Forward/Reverse
ر.ق8,500.00Add to cart
