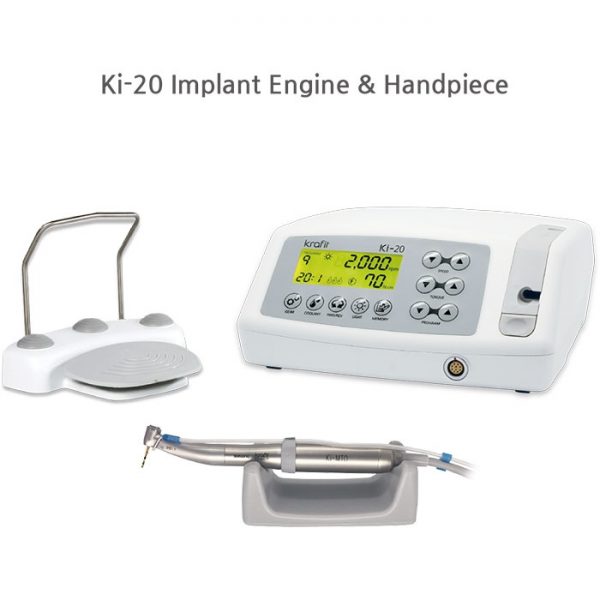

Surgical Motor Ki-20 ( Optic )
Surgical Motor Ki-20 ( Optic )
0
Surgical Motor Ki-20 ( Optic )
Description
Related products
MicroNX New ImplaNX Implant Motor
Product Specifications
Please check the voltage and the electric power of the product, and conform to the instructions.
ENGINE BODY
Power supply voltage: AC 110 ~ 240 V
Frequency: 50/60 Hz
Power consumption: 100 VA
Max. Coolant flow rate: 100 ml/min
Fuse: 2 x 250 V – T1.25 AH
Dimension: 250mm(W) x 250mm(L) x 110mm(H)
MOTOR
Model: ISM-B70L
Max. Speed: 40,000 rpm
Internal resistance(Phase to phase): 730 [mΩ]
Internal inductance(Phase to phase): 110 [uH]
Fuse: 24mm(Diameter) x 100mm(Length)
Weight: 80 g
Optic: Yes
FOOT PEDAL
Model: FC-V1
Speed control: Variable
Foot control functions: Program control, Coolant control, Forward/Reverse
ر.ق8,500.00Add to cart
